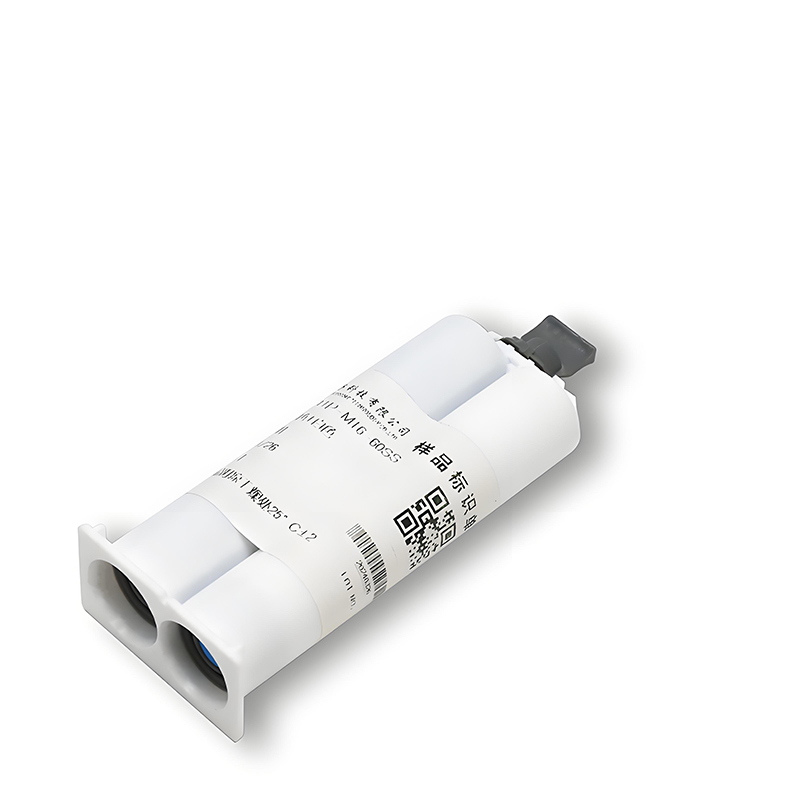

HRTP-M16-GSR060WGW650 Series gel is a paste-like gap-filled two-component thermoconductive gel. Can be solidified at room temperature or high temperature conditions, curing product is a soft and excellent thermal conductivity elastomer, formed with the structural shape, for uneven ceramic, radiator surface or irregular circuit board, it has excellent structural adaptability and structural parts surface adhesion characteristics, gap gap filling is full.
■ Two-Part rapid fixation
■ After solidification, it has excellent thermal conductivity and elasticity
■ Forming according to the shape of the structure
■ Excellent structural adaptability and sufficient filling of gaps and gaps
Customizable 【 e.g. Weight (30cc/50cc/300cc/1kg/) can 】
| ■ Circuit board | ■ Communication hardware | ■ Memory Module |
| ■ Integrated circuits, CPUs, memory modules | ■ Portable electronic devices | ■ Universal for thermal conductivity of electronic and electrical components |
| Material Properties Before Curing | Property | Value | Unit | Test Method |
| Thermal Conductivity | 6.0 | W/mk | ASTM D5470 | |
| Color | Gray/White | / | Visual | |
| Gel A Viscosity | 610000 | CPS | ASTM D2196 | |
| Gel B Viscosity | 670000 | CPS | ASTM D2196 | |
| Density | 3.2 | g/cm³ | ASTM D792 | |
| Material Properties After Curing | AB Mixing Ratio | 1:1 | / | / |
| Hardness | 60 | Shore 00 | ASTM D2240 | |
| Operating Temperature | -40~180 | ℃ | NA | |
| Dielectric Breakdown Voltage | 1X1013 | Ωxcm | ASTM D257 | |
| Breakdown Potential | ≥6 | KV | ASTM D149 | |
| Durability Period | 6 Months | / | / | |
| Color | Gray | / | Visual |
